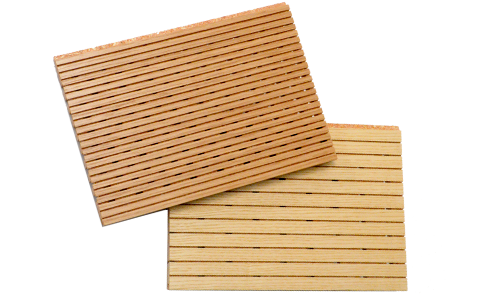

AUDITION acoustical wood planks are available for ceiling and wall systems featuring wood veneer face. Its exclusive engineering provides a monolithic linear appearance with the benefits of acoustical absorption. For added sound control, acoustical liners may be used. The result is superior quality, high-performance, stylish acoustical tongue and groove planks that allow for field cutting. Tongue and Groove planks allow for easy field cuts. Simple to install using the provided clips.
Features
Appearance & Color
Available in wood veneer in the species shown in the color chart below*:
Audition 8 (8mm grooves)
Audition 16 (16mm grooves)

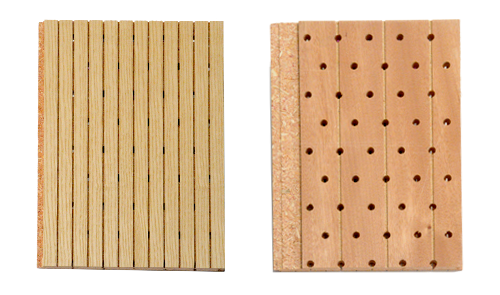

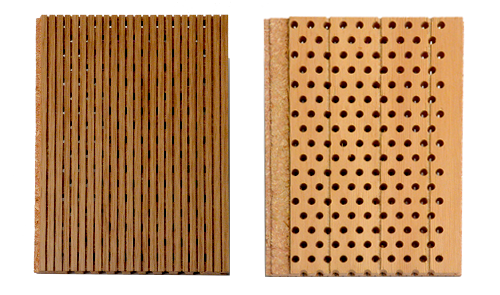

Back perforation spacing 32mm O.C. in diamond pattern
Audition 8 and Audition 16 may be stained to match

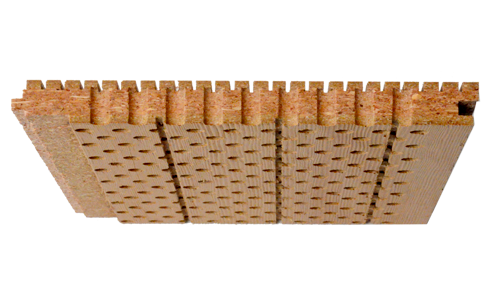

System comes in Tongue and Groove planks
FSC available (LEED points possible)
Core
Available core materials are:
Particle Board
MDF
Class A Fire Rated Particle Board
Class A Fire Rated MDF
Finish & Fire-Rating
Audition 8 and Audition 16 may be finished in:
Lacquer Top Coat
Waterborne Acrylic
Acoustic Absorption
Optional features for sound control:
NRC varies based on kerf spacing
Soundtex applied to back for acoustical absorption
Echo Eliminator Acoustical Liner available in 1″ and 2″
Quiet Liner Acoustical Cotton available
Sizes
Standard Audition 8 and Audition 16 are:
3/4″ by 7-1/2″ x 96″
3/4″ by 7-1/2″ x 120″
Mounting Options
Audition 8 and Audition 16 are available for ceiling and wall through the following mounting systems (see Resources below to view standard details for specific mounting options):
Panel Retaining Clip
Color Chart
-
- Ash
-
- Maple
-
- Beech
-
- Walnut
-
- Red Oak
-
- White Oak
-
- Hickory
-
- Cherry
-
- Natural Bamboo
-
- Caramelized Bamboo
**All natural wood products vary in color and grain. Due to monitor differences, the actual color may differ from the images on the screen.
